Using convolutional-neural-networks and data augmentation to predict flower species

Project Description

The goal for this project was to find out the difference between using various data augmentation techniques on flower classification using convolutional neural networks(CNN). There is a total of 104 different flower classes in the dataset. It consists of 7382 unique samples which all have a unique ID. These are further divided into a training, validation and test sets. Additionally, the training and validation set samples contain a label, which represents the class of flower. Since this is an image classification problem, we decided to use transfer learning from pre-trained models. The advantage of this is that it will allow us to build an accurate model in a timesaving manner. A pre-trained model is one that was trained on a large dataset in-order to solve a similar image classification problem.

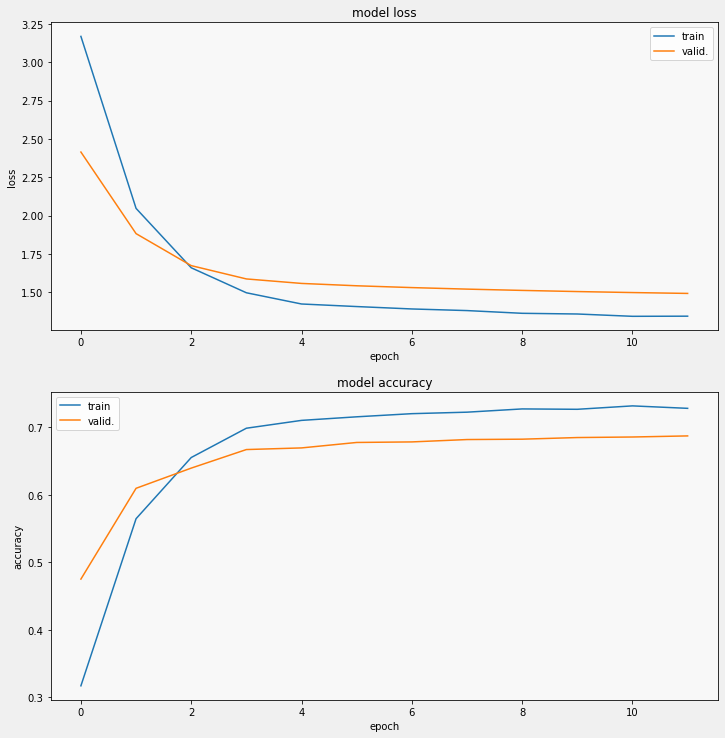

InceptionV3 performance

Pretrained Model

The choice of pre-trained model was a principal component of the project. We looked at different research papers that compared the performance of different pre-trained models. From these we observed that the InceptionV3 model is one of the best performing. On the left you can see a graph of the models accuracy on the flower dataset. This was made with no data augmentation on the dataset. A ~70% accuracy on the raw dataset is very promising. In comparison, the VGG16 model was also tested on the dataset and performed much worse at ~20% accuracy. The loss can also be seen in graph and at ~1.5 it is much lower when compared to VGG16's 3.5. The above image shows an example of flower classification using the InceptionV3 model and no data augmentation.

Flowers with random erasing

Data Augmentation

For the project it was important to chose different data augmentation techniques in order to compare their accuracy with one another. There are various research papers that have tested different augmentation techniques and many of them found that changing the geometry of the image results in a higher accuracy. Additionally, it was shown that cropping and random erasing perform better than other geometry changing augmentation. As such, we chose these 3 augmentation techniques based on existing literature; Cropping, random erasing, and scaling. On the right you can see an example of random erasing. The method choses a random width and height of pixels and removes them from the image.

Results

The F1-score for the different augmentation techniques showed that on their own, the score that they achieved was very similar to each other. They were all in the general area of 80-81% F1-score. While previous research showed that these data augmentation techniques should increase the accuracy of the CNN, it may be that this is only the case when used in conjunction with one another. For a more in-depth analysis of the results, please refer to the research paper below.

Download the paper here.
